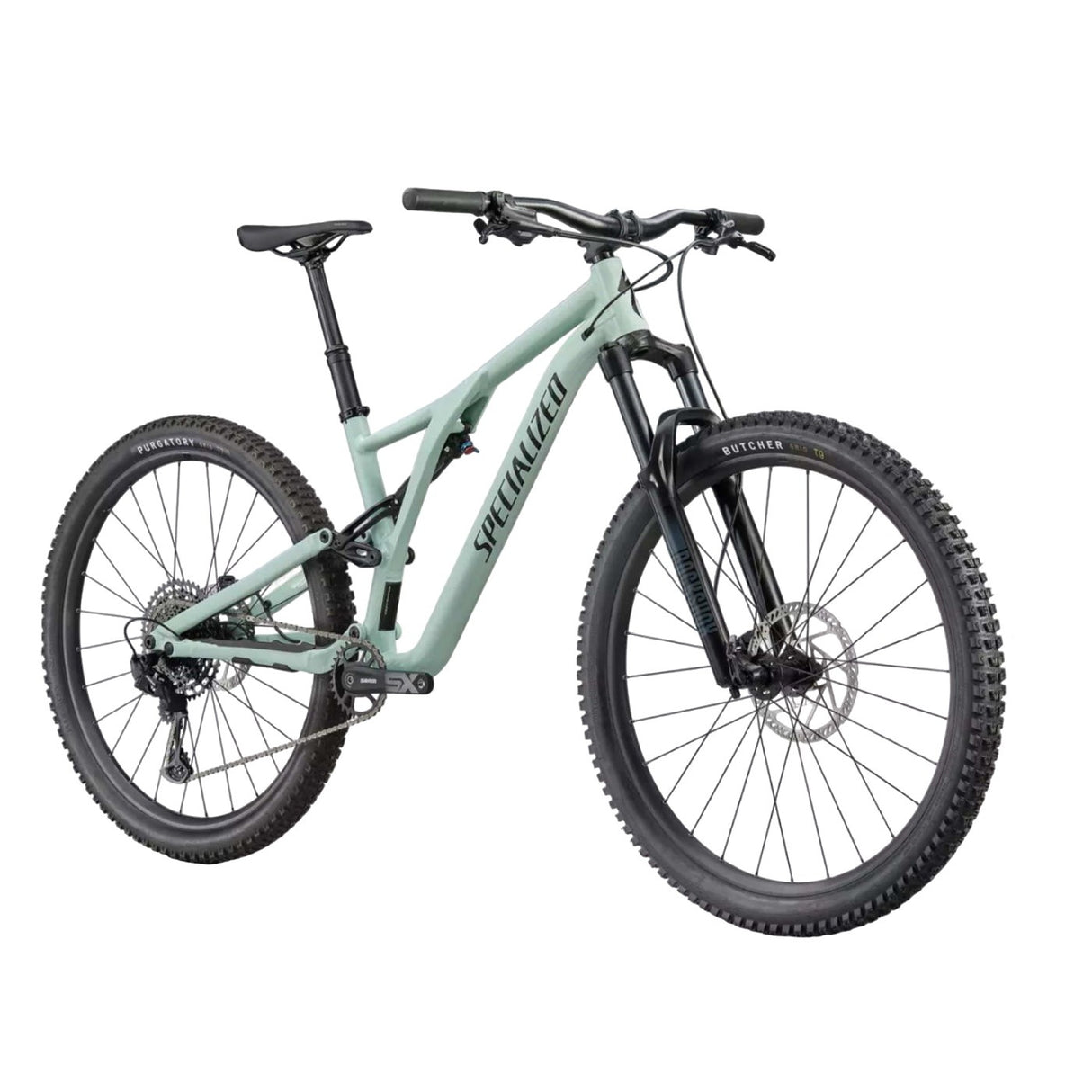

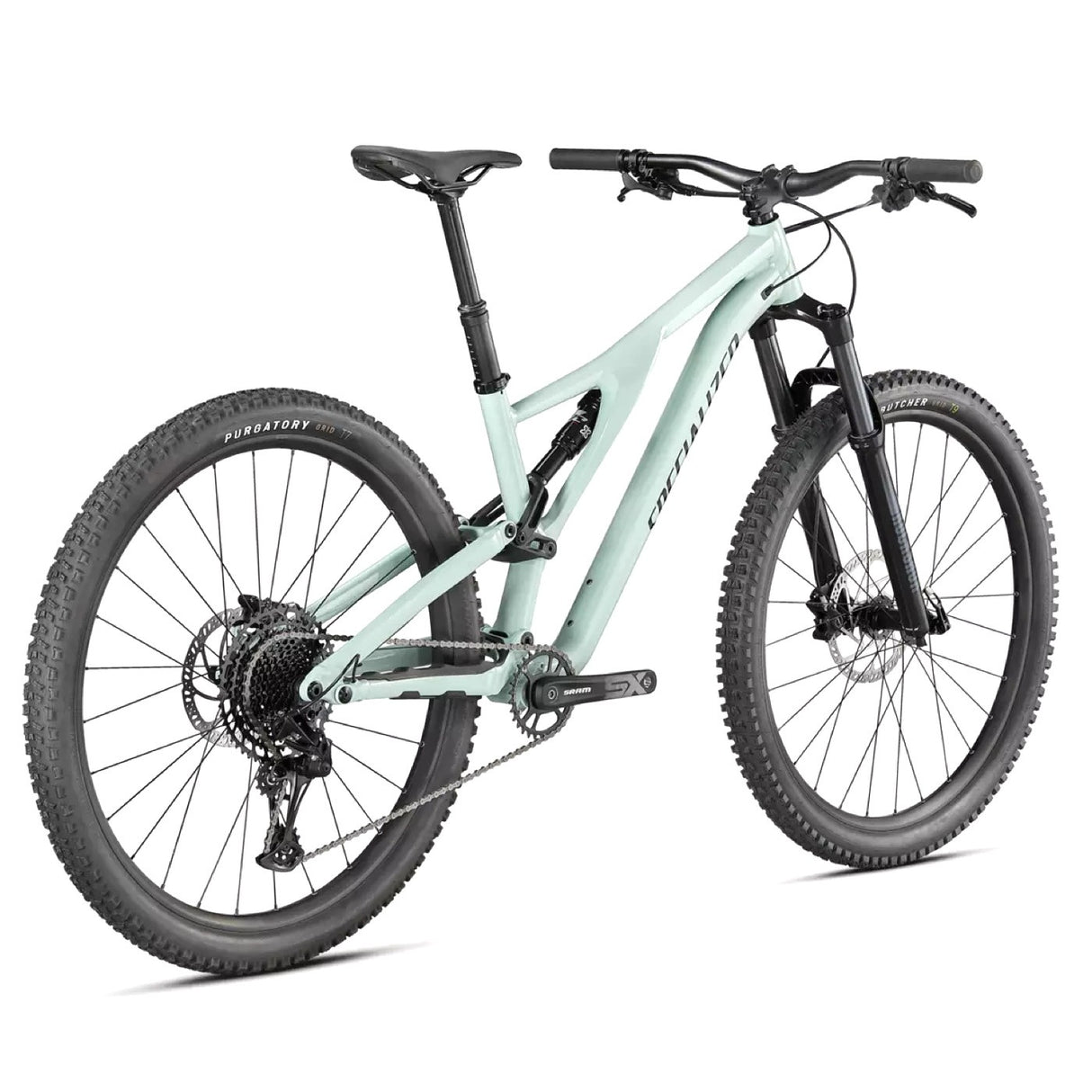

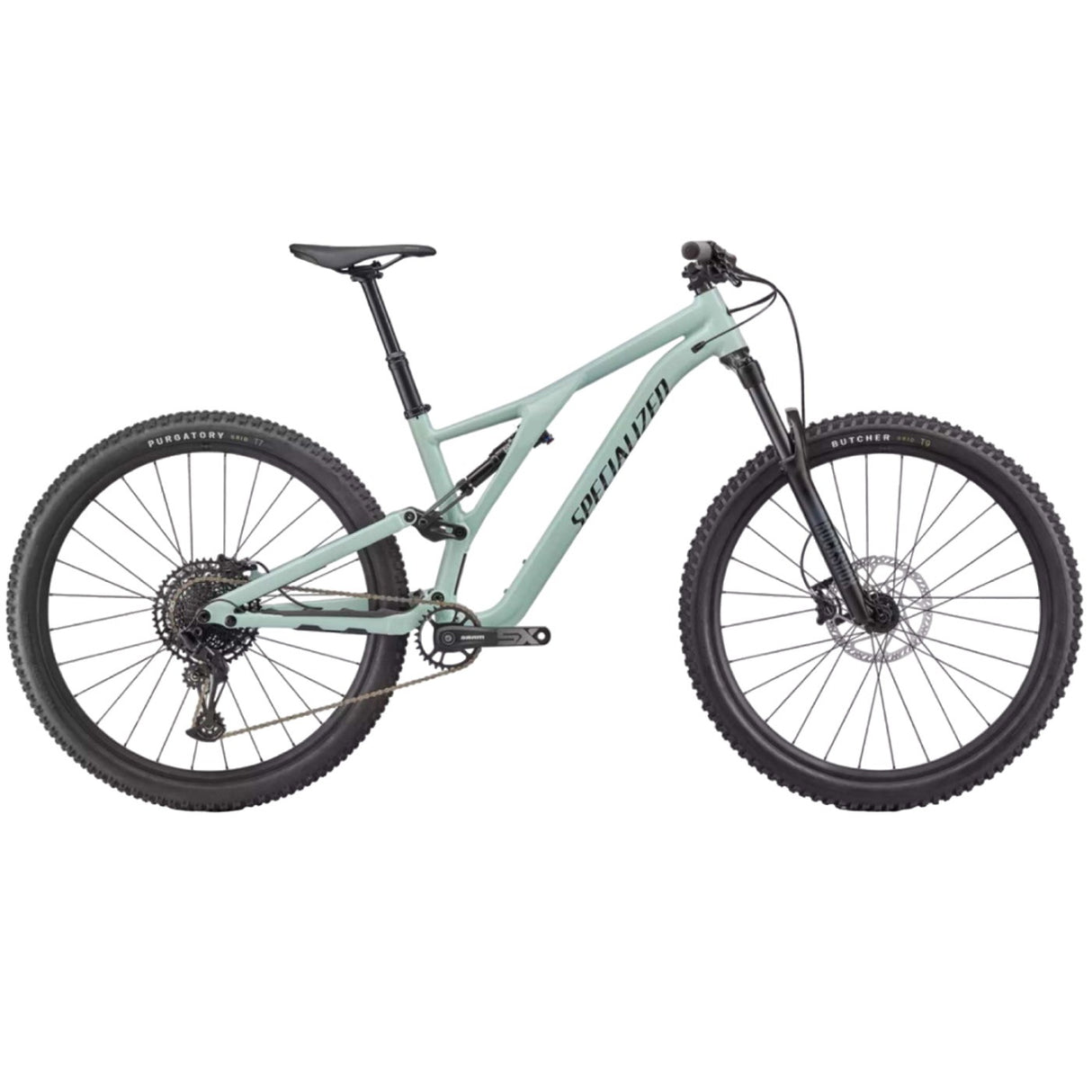

Stumpjumper Alloy Bike
Sale price
€2.240,00
Regular price
€2.800,00
Unit price
Unavailable
SKU:
93322-7003
Sale price
€2.240,00
Regular price
€2.800,00
Unit price
Unavailable
Stumpjumper Alloy Bike - Gloss Ca White Sage/Black / S3 is backordered and will ship as soon as it is back in stock.
Description
Description
The Stumpjumper features an innovative alloy frame. Its asymmetric design, new geometry, refined kinematics, and reliable, quality components are the perfect combination for tackling the trail. It features a 12-speed SRAM SX groupset.
Geometry
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm | 440mm |
| Handlebar stem length | 75mm | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 501mm | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
| Frame Reach | 366mm | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
| Stack to Stem | 509mm | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm |
| Reach to Stem | 363mm | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm |
| Head Tube Length | 99mm | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm |
| Steering Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| Bottom bracket height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
| BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork Length (full) | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
| Fork Offset / Rake | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
| Advance | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
| Chain guard length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
| Virtual Horizontal Tube Length | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
| Standover Height | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
| Seat post length | 433mm | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm |
| Saddle Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE, G: FORK HEIGHT, REACH, STACK
