Description
Description

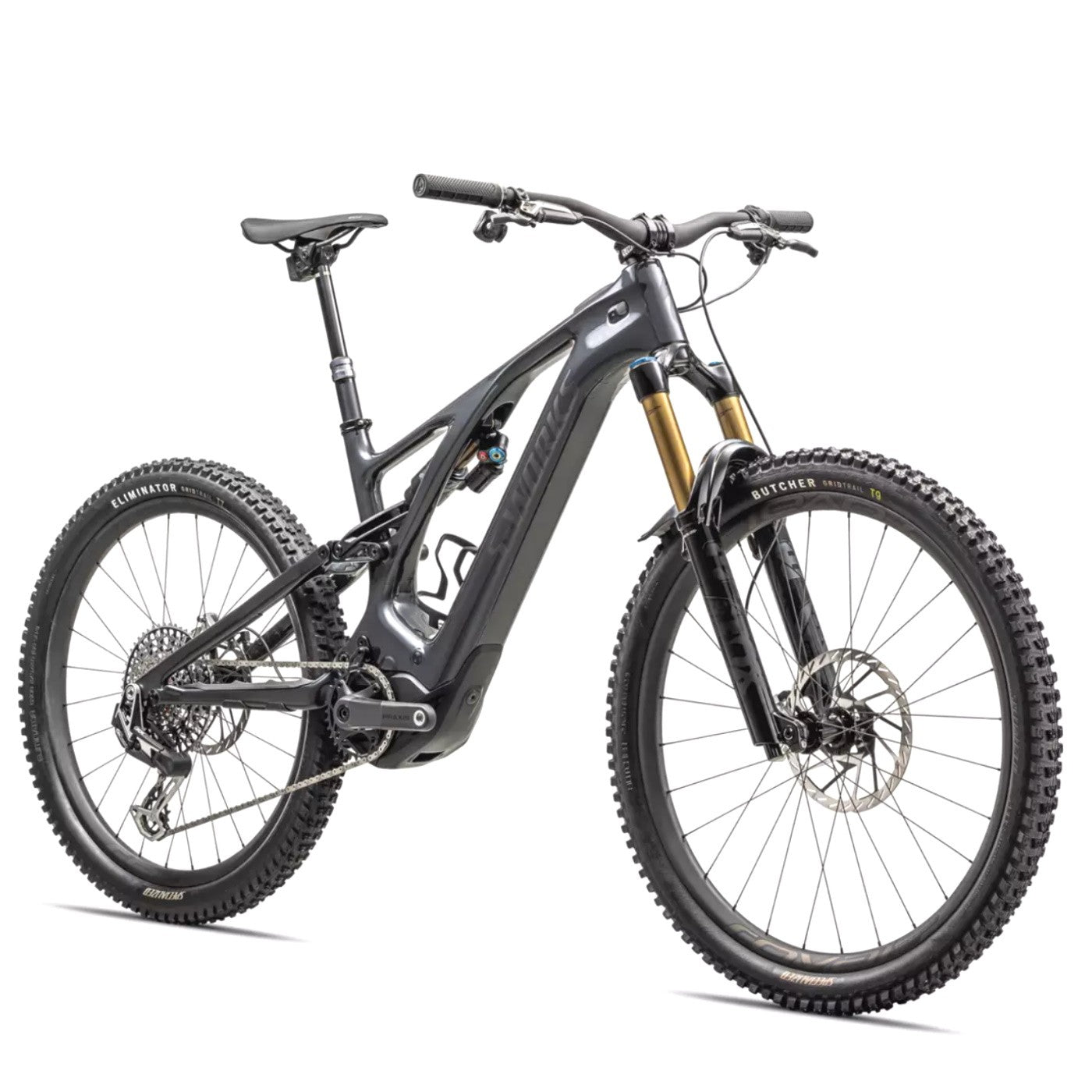

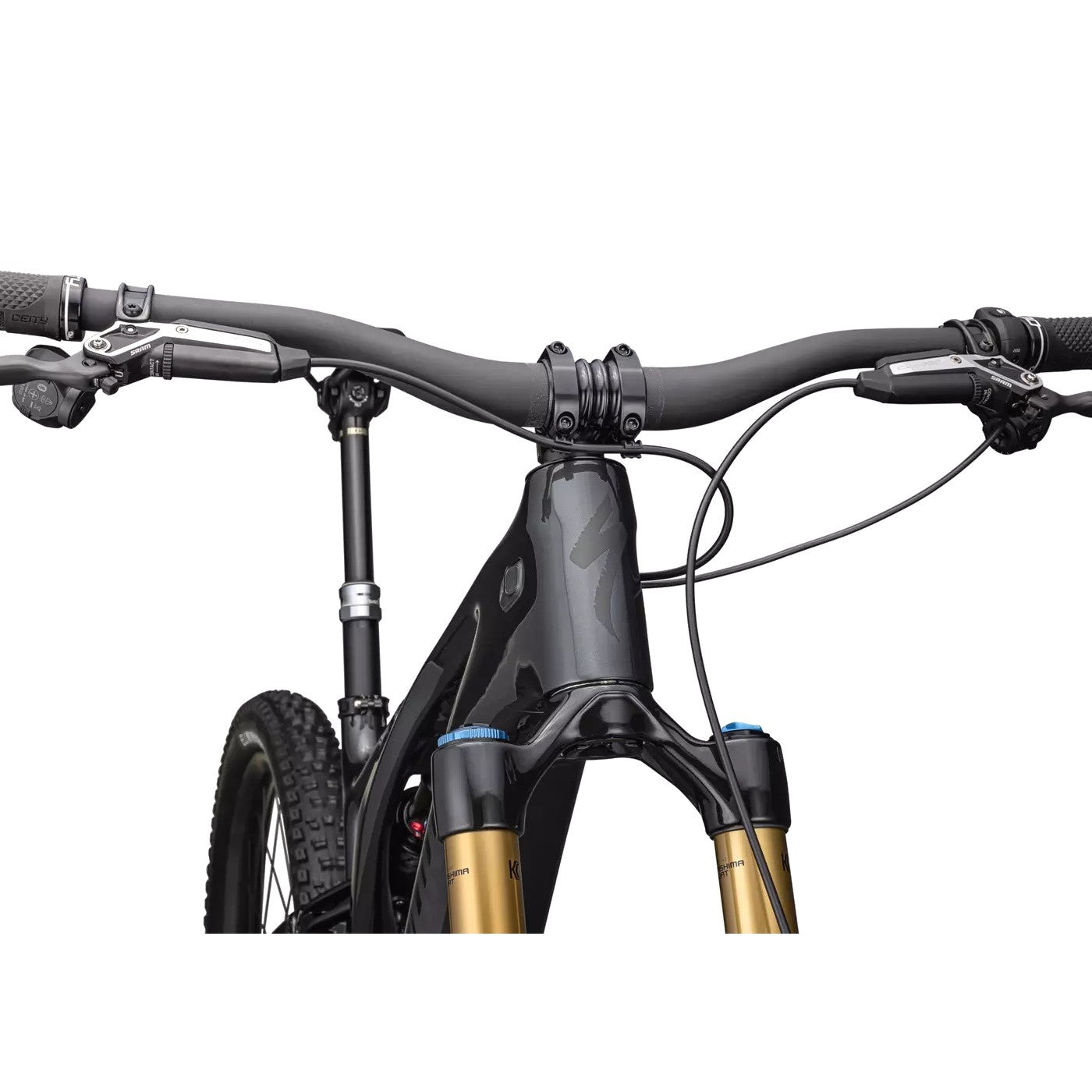

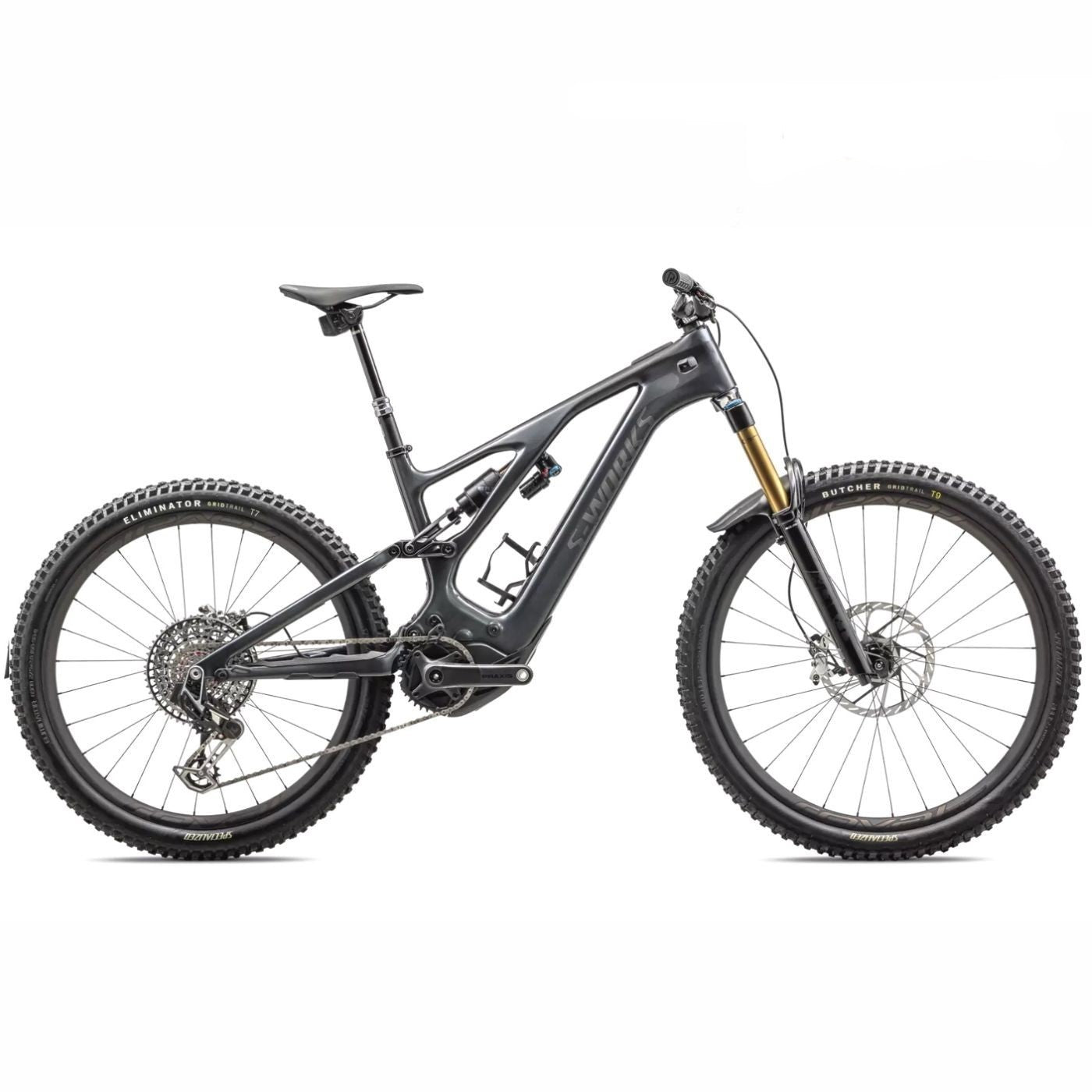

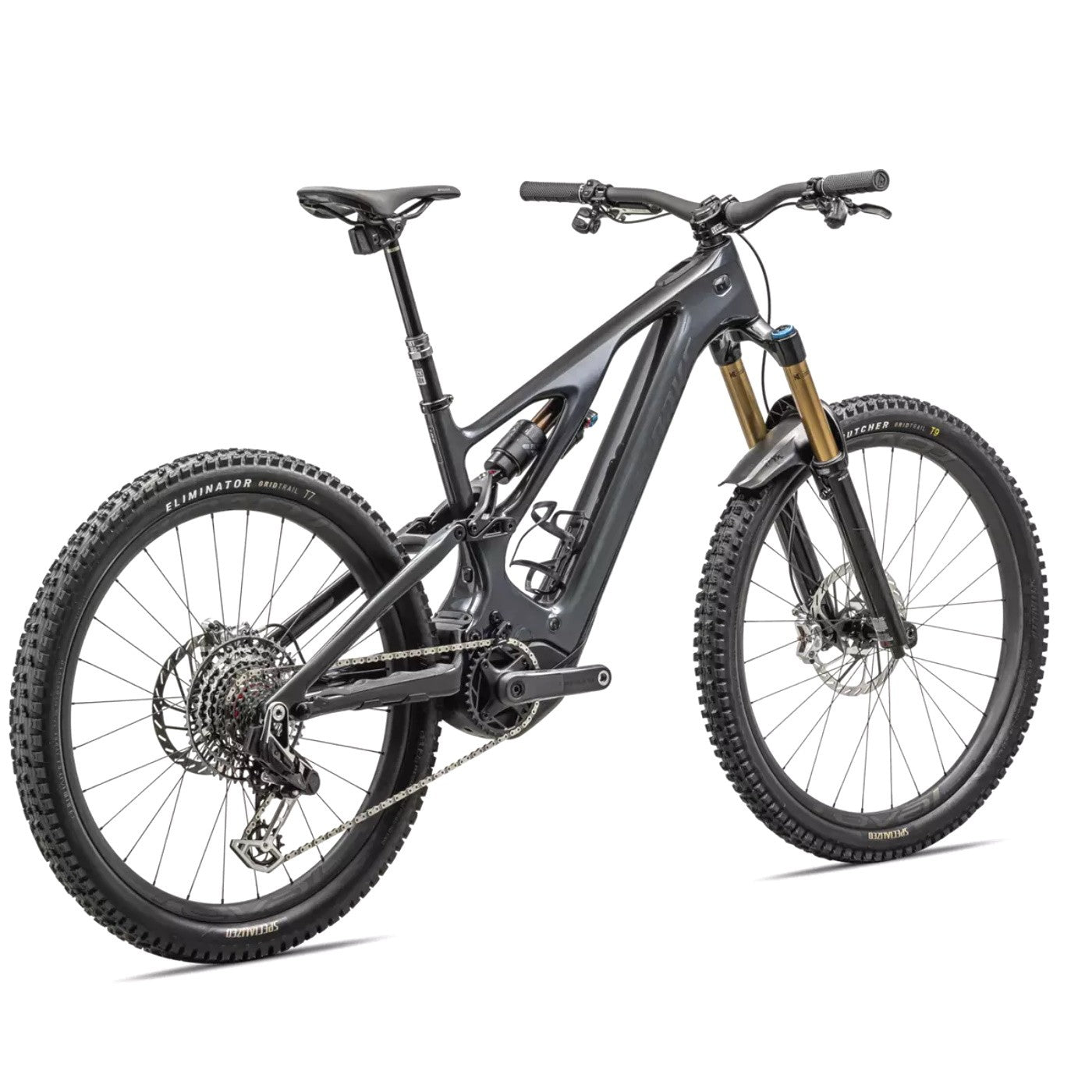

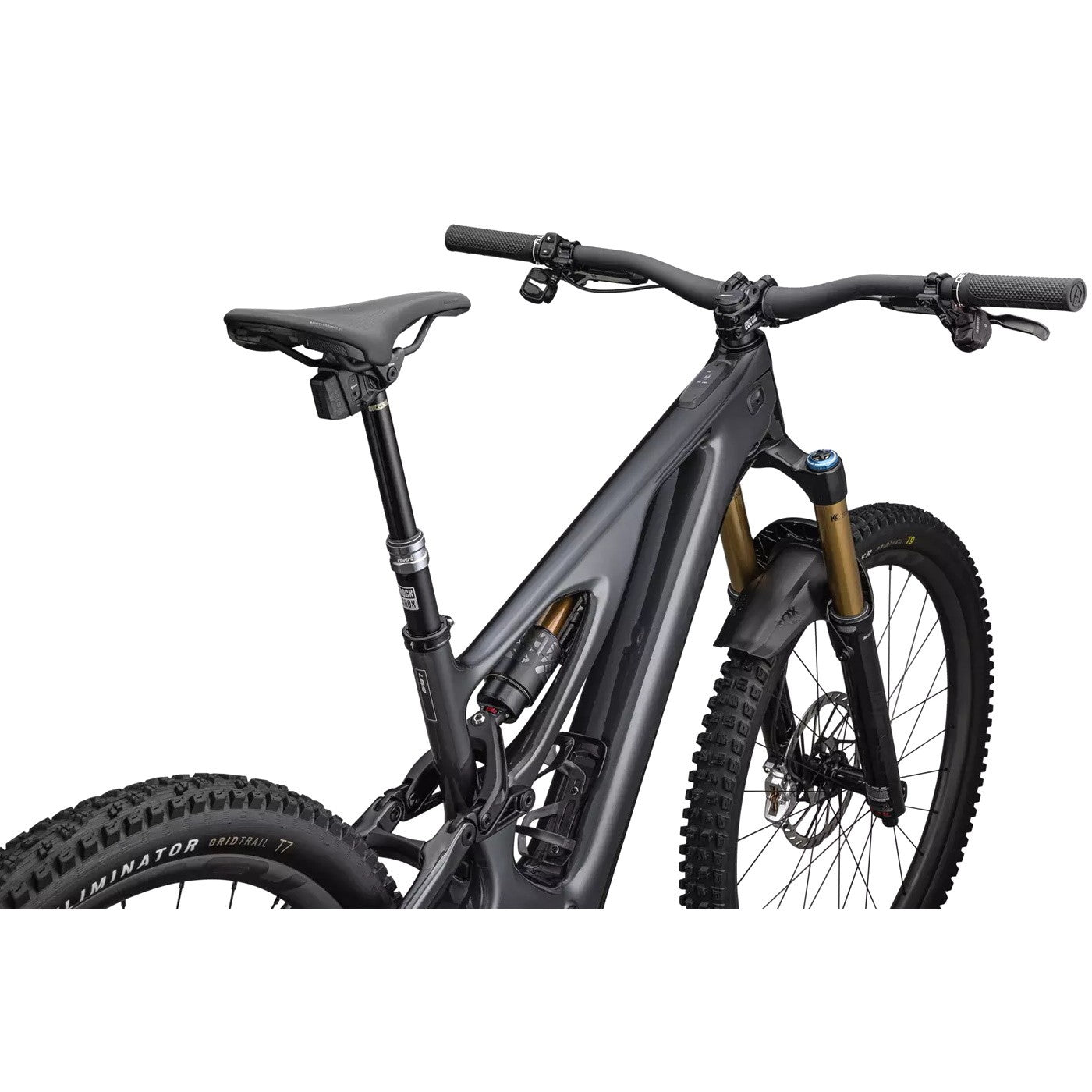

The Turbo Levo represents an unmatched combination of ride quality, fully usable power, and excellent range. The epitome of 40 years of experience designing the world's best mountain bikes. Since its introduction, the Turbo Levo has set the benchmark in the e-MTB market, and this version raises the bar once again. The Turbo Full Power 2.2 motor with MasterMind TCU amplifies your pedaling power by up to 4x, so you can go anywhere. The battery life is also unbeatable, with up to five hours of trail riding. The Levo's optimized frame boasts 150mm of custom-tuned rear travel and adjustable geometry. Because at the end of the day, it's the quality of your ride that matters. Believe us. When you'll settle for nothing but the best, the S-Works Turbo Levo gives you a SRAM Eagle AXS XX1 drivetrain, FOX Factory suspension, and featherweight Roval Traverse SL wheels. The integrated Turbo Full Power 2.2 motor with 700Wh battery and the advanced control unit, the MasterMind TCU, deliver 90 Nm of torque and 565 watts of power for a battery life of up to five hours, to let you ride longer and faster.
GEOMETRIE
| GEOMETRIA | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Lunghezza Pedivella | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
| Larghezza Manubrio | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
| Lunghezza attacco manubrio | 40mm | 40mm | 40mm | 40mm | 50mm | 50mm |
| Larghezza sella | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Lunghezza reggisella | 100mm | 125mm | 150mm | 170mm | 170mm | 200mm |
| Stack | 605mm | 617mm | 626mm | 635mm | 644mm | 653mm |
| Reach | 412mm | 432mm | 452mm | 477mm | 502mm | 532mm |
| Headtube Length | 105mm | 105mm | 115mm | 125mm | 135mm | 145mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Altezza movimento centrale | 352mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 25mm | 27mm | 27mm | 27mm | 27mm | 27mm |
| Trail | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
| Lunghezza Forcella (intera) | 557mm | 567mm | 567mm | 567mm | 567mm | 567mm |
| Offset forcella / Rake | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Avancorsa | 738mm | 760mm | 784mm | 814mm | 843mm | 878mm |
| Lunghezza Batticatena | 442mm | 442mm | 442mm | 442mm | 442mm | 442mm |
| Interasse | 1179mm | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
| Altezza Standover | 752mm | 776mm | 783mm | 787mm | 788mm | 790mm |
| Lunghezza piantone | 380mm | 390mm | 405mm | 425mm | 445mm | 465mm |
| Angolo Sella | 78° | 77.2° | 76.7° | 76.2° | 76.2° | 76.2° |
| Max Seatpost Insertion | 210mm | 220mm | 240mm | 255mm | 275mm | 295mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
